Logitech Rally

• Datasheet -Logitech Rally Plus

The Logitech Rally Plus Video Conferencing Kit offers professional quality video and audio for large rooms. The combination of the camera, speakers, and mic pods makes screen sharing more efficient. The Rally components provide superior versatility with style for the comfort of your meeting participants.

• Ultra-HD imaging system supports:
• 4K, 1440p, 1080p, 900p, 720p, and SD at 30fps
• 1080p, 720p at 30fps and 60fps
• Smooth motorized pan, tilt, and zoom
• Pan: ±90°
• Tilt: +50° / -90°
• 15x HD zoom
• Field of View:
• Diagonal: 90°
• Horizontal: 82.1°
• Vertical: 52.2
• Autofocus
• 3 camera presets
• Kensington security slot
• Video mute/unmute LED indicator
• Standard tripod thread
• Lens parks at -90° in sleep mode for assured privacy
• RALLY MIC POD
• Pickup range: 4.5m diameter
• Four omnidirectional microphones forming eight acoustic beams
• AEC (Acoustic Echo Cancellation)
• VAD (Voice Activity Detector)
• Background noise suppression
• Mute button with LED status indicator
• Captive 2.95m 12-pin cable
• Daisy chain up to 7 Rally Mic Pods
• Frequency response: 90Hz – 16kHz
• Sensitivity: >-27dB +/-1dB @ 1Pa
• Microphone data rate: 48 kHz

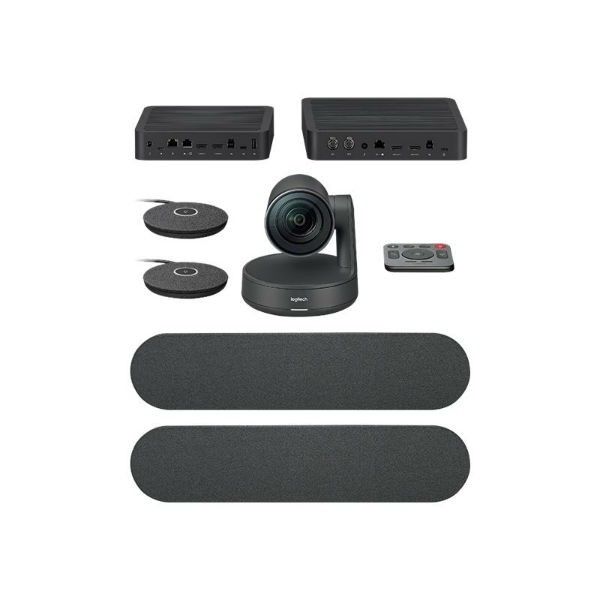

• 1 x Logitech Rally Camera
• 1 x Rally Screen Hub
• 1 x Desktop Rally Hub
• 2 x Rally Speakers
• 2 x Rally Microphone
• 1 x Remote Control
• 1 x USB Type-C to USB-C
• 1 x USB Type-A to USB-B
• 1 x CAT6 Ethernet Cable
• 2 x HDMI (Type A)
• 2 x CA cables
• 2 x Power Supplies
• 1 x User Guide
